Professional Hydraulic Drilling Rig / Mining Core Drilling Machine
Mining Core Hydraulic Rotary Drilling Rig Down The Hole Drilling Machine
this series water well drilling rig uses full hydraulic control,
and the Top drive to drive the rotation of drilling tools with very
high drilling efficiency.
This series of water well drilling machine has the characteristics
of standardized configuration, compact and reasonable structure,
fast drilling speed, economical and durable, low failure rate, etc.
It has been recognized by the market once it is launched, and has
been widely used in mining engineering construction, civil
drilling, geothermal drilling and other fields.

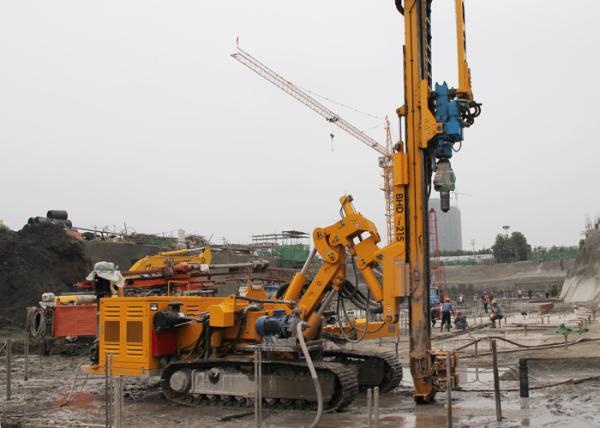

BHD-215 multifunctional hydraulic anchor drill rig,Crawler type,Diesel engine
| Model No. | BHD-215 | |
| Engine | QSC8.3-C215 | |
| Power type | Desiel power | |
| Max.power output (KW) | 160 | |
| Mode of operation | Rotary/Percussive | |
| Electric system (V) | 24 | |
| Fuel tank capacity (L) | 380 | |
| 1st circuit operating pressure (Mpa) | 0-24 | |
| 2nd circuit operating pressure (Mpa) | 0-20 | |
| 3rd circuit operating pressure (Mpa) | 0-25 | |
| Hydr. oil tank capacity (L) | 500 | |
| Feed stroke (mm) | 4000 | |
| Feed force (KN) | 80 | |
| Retraction force (KN) | 120 | |
| Feed rate (m/min) | Low | 0-15 |
| High | 0-60 | |
| Retraction rate (m/min) | Low | 0-15 |
| High | 0-60 | |
| Percussion Frequency (Times/min) | 0-1150 | |
| Max.torque (N·m) | 8750(At high speed) | |
| 15800(At low speed) | ||
| rotating (r/min) | 0-120(High speed) | |
| 0-60(Low speed) | ||
| Transport dimensions(L*W*H) (mm) | 7800*2280*2700 | |
| Weight (Kg) | 14000 | |
Description:
The BHD-215 multifunctional hydraulic anchor drill rig finds it’s usage at anchor & minipile engineering field for construction deep pit, subway, tunnel, railway, highway and disaster relief project.
|
|
