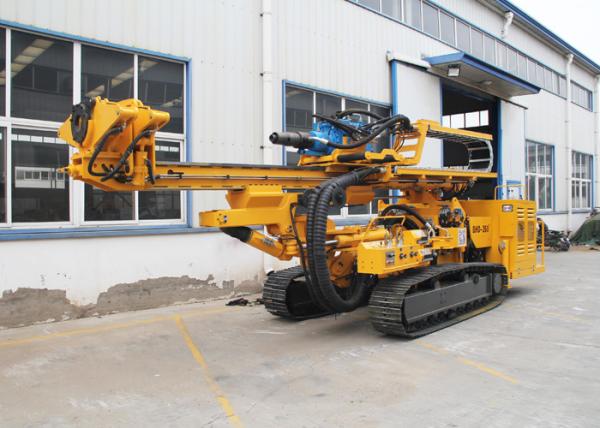

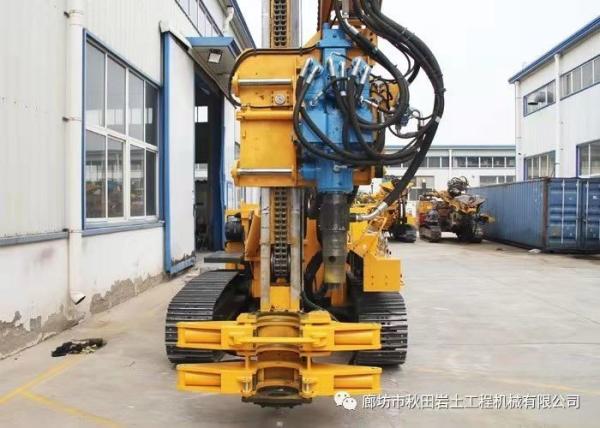

Hydraulic Rotary Drilling Rig With ISO 9001 BHD - 260
BHD-260 hydraulic anchor drilling rig with more powerful engine, ensure its powerful output. It can be used to drill with efficiency in harder formations such as formations with pebble and boulder.
Product Description
BHD-260 Hydraulic Rotary Drilling Rig is designed been used for anchor drilling . It is a full hydraulic machine.It can be used in many fields such as pipe-shed,micropile,grout jetting,deep foundation pit ,highway slope stabilization and railway bed stabilization . It is favored by many customers because of its efficiency and stable performance.
Advantage:
1. The machine is non-sophisticated in structure, safe and reliable.
2. Longer service life.
3. Advanced design, manufacture rigorous; stable quality and high efficiency.
4. Products can be adapt to user’s multiple usages.
5. To provide you with perfect service and remote technical guidance.
Specifications:
| Engine Model No. | QSC8.3-C260 |
| Emission level | III |
| Rated power (kW) | 194kW @2200rpm |
| Caterpillar Band Model No. | LG-154 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.2/3.2 |
| Ground pressure (N/cm2) | 5.8 |
| Gradeability (°) | 25 |
| Rotation rate (r/min) | 0-100 0~50 |
| Torque range at low gear (Nm) | 17000 |
| Torque range at high gear(Nm) | 9900 |
| Impact work (N*m) | 1180 |
| Percussion frequency (min1) | 1250 |
| Feed stroke (mm) | 4000 |
| Feed force (kN) | 100 |
| Retraction force (kN) | 100 |
| Feed rate (m/min) | 0~12 0~54 |
| Retraction rate (m/min) | 0~12 0~54 |
| Feeding Pattern | Motor + Gear box + Chain |
| Clamp range (mm) | 60 ~ 219/89 ~ 273 |
| Maximum passing diameter (mm) | 300 |
| Dimension (mm) | 7800x2280x2700 |
| Weight (T) | 15 |
|
