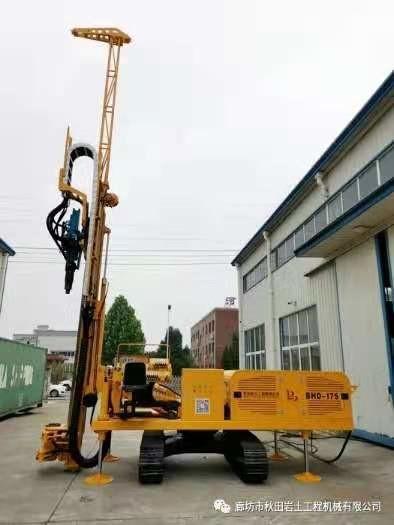

Electric Motor Powered Multifunctional Drilling Rig With ISO 9001
BHD - 175
BHD-175 anchor drilling rig with center rotating table is suitable
for multi-position drilling works. With compact and sturdy structure, it can be used for anchor
borehole,anchor nail borehole and root pile borehole drilling with
multiple drilling techniques at higher drilling efficiency.This rig is designed been used for anchor drilling .It is a full hydraulic machine .It can be used in many fields such as pipe-shed,micropile,grout
jetting,deep foundation pit,highway slope stabilization and railway
bed stabilization.It is favored by many customers because of its efficiency and
stable performance.
Quick Detail:
① Tramming Motor:double-speed
② Feed force(k.N):38
③ Feed rate(m/min):0~18.5/0~75
④ Feeding Pattern:cylinder+chain
⑤ Dimension(mm):7000*2200*2900
⑥ Weight(kg):11000
History:
Our company is located at Langfang city, the "bright pearl city" of Beijing & Tianjin corridor, with beautiful environment, convenient traffic facilities and distinct regional advantages, 50Km distance both to capital Beijing & Tianjin.
We keeps serving worldwide customers with high quality products since 2012.
Service culture
Specifications:
| Rated power (kW) | 55+55+18.5+2.2 |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (m/h) | 580/820 |
| Ground pressure (N/cm2) | 5.68 |
| Gradeability (°) | 25 |
| Rotation rate at low gear (r/min) | 0~36,0~72 |
| Rotation rate at high gear (r/min) | 0-36/66/79 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N*m) | 750 |
| Percussion frequency (min1) | 1400 |
| Feed stroke(mm) | 3500 |
| Feed force(kN) | 38 |
| Retraction force(kN) | 76 |
| Feed rate(m/min) | 0-18.5 0~75 |
| Retraction rate(m/min) | 0-9.5 0-38.5 |
| Feeding Pattern | Cylinder + Chain |
| Clamp range(mm) | 60-219 |
| Maximum passing diameter(mm) | 260 |
| Dimension(mm) | 7000x2200x2900 |
| Weight(T) | 11 |
|
|
