| Brand Name : | Bealong |
| Model Number : | BHD-180B |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

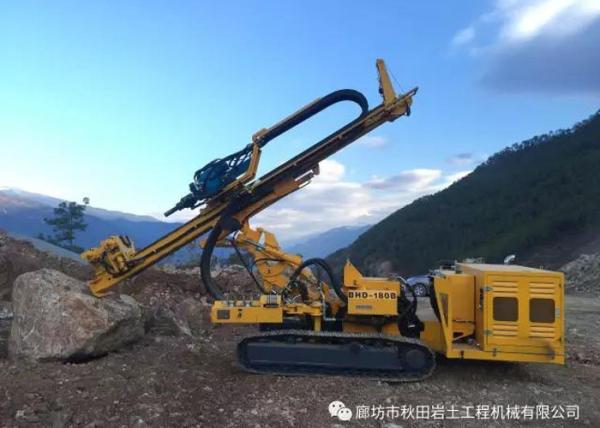

Hydraulic Anchor drilling rig,Crawler type,Diesel engine,BHD-180B
Product Description
The crawler rock drill is a new type of drilling rig independently
produced by our factory. Its boring speed is fast, it is easy to
move, and it can drill soil and rock. Suitable for environment such
as foundation pit slope protection.
Hydraulic Anchor drilling rig,Crawler type,Diesel engine,BHD-180B
| Model No. | BHD-180B | |
| Power type | Desiel power | |
| Max.power output (KW) | QSB5.9-C180 132 | |
| Mode of operation | Rotary/Percussive | |
| Electric system (V) | 24 | |
| Fuel tank capacity (L) | 380 | |
| 1st circuit operating pressure(Mpa) | 0-24 | |
| 2nd circuit operating pressure(Mpa) | 0-24 | |
| 3rd circuit operating pressure(Mpa) | 0-25 | |
| Hydr. oil tank capacity (L) | 450 | |
| Feed stroke (mm) | 3500 | |
| Feed force (KN) | 35 | |
| Retraction force (KN) | 65 | |
| Feed rate (m/min) | Low | 0-22 |
| High | 0-61 | |
| Retraction rate (m/min) | Low | 0-11 |
| High | 0-31 | |
| Percussion Frequency (Times/min) | 0-1250 | |
| Max.torque (N·m) | 13000 | |
| rotating (r/min) | 0-40 0-56 0-60 0-80 0-85 0-112 0-120 0-165 | |
| Transport dimensions(L*W*H)(mm) | 6700*2000*2600 | |
| Weight (Kg) | 10500 | |
Feature:
|
|
