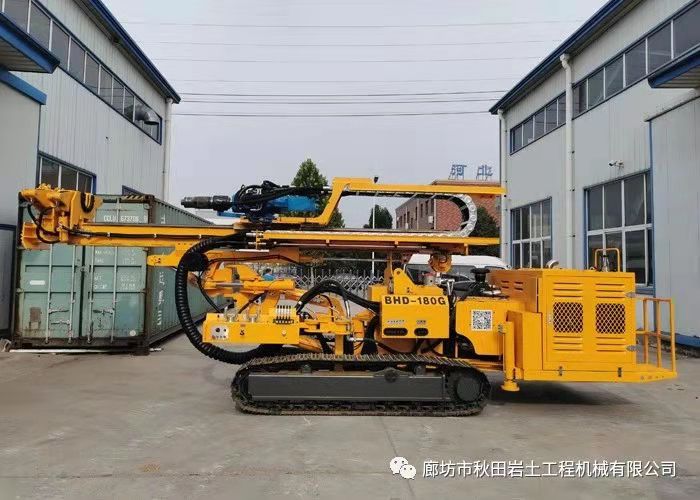

Full Hydraulic Crawler Diesel Engine Anchor Drilling Rig BHD - 180G
BHD-180G hydraulic anchor drilling rig with its articulation system finds its usage at multi-position and multi-angle drilling works with easy operation. The rotation speed of its rotary head is much higher so that keeps its penetration speed much faster.
Packaging and Shipping:
Payment:L/C D/A D/P T/T
Delivery Term:FOB,CFR,CIF,EX-Work,etc.
Package: as standard of manufacture
Quick Detail:
* Compact design
* Easy to operate
* Long service life
* Multi-function application
Specifications:
| Engine Model No. | QSB5.9-C180 |
| Emission level | III |
| Rated power (kW) | 132kW @2200rpm |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.1/3.0 |
| Ground pressure (N/cm2) | 5.3 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~80,0-160 |
| Rotation rate at low gear (r/min) | 0~55,0-110 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1350 |
| Feed stroke (mm) | 3500 |
| Feed force (kN) | 38 |
| Retraction force (kN) | 76 |
| Feed rate (m/min) | 0~16 0~63 |
| Retraction rate (m/min) | 0-8.5 0~32 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 6700x2280x2600 |
| Weight (T) | 11 |
