| Brand Name : | Bealong |
| Model Number : | BHD-210 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

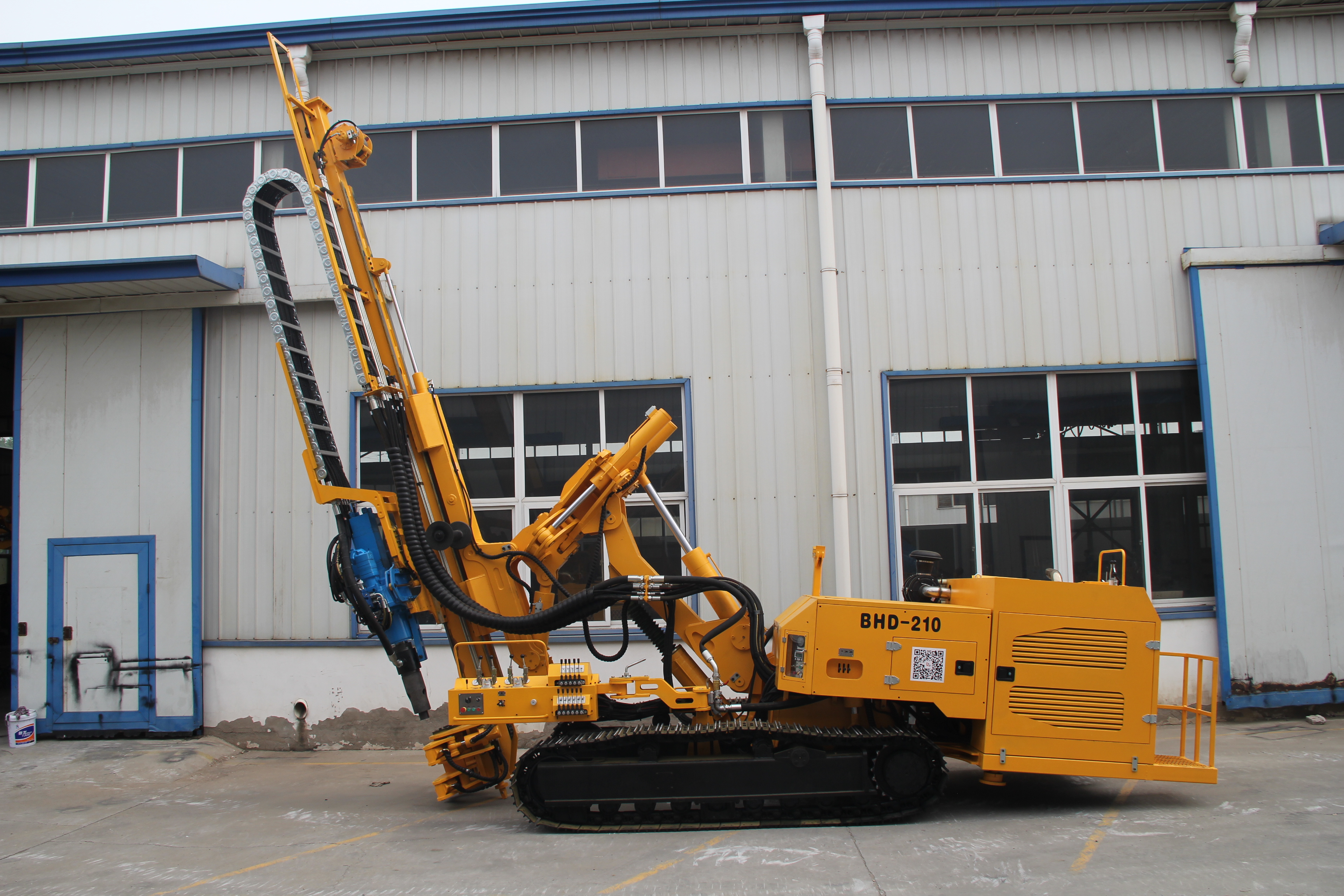

154kw And Swing Operation Panel Cylinder Feeding Highway Drill Rig BHD - 210
BHD-210 full hydraulic anchor drilling rig has enhanced its power input and output power. It is more suitable for complex formation construction and has higher efficiency.
The Highway drill rig is designed for our customer's solutions of all needed jobs such as anchors for slope stabilization and modern foundation execution,jet grouting, freezing borehole drilling in tunnel, auger boring as well as micropile. Our drilling rigs found their usage to bridges, railways, underground lines, motorways, tunnels and buildings all over the world.
History:
Our company is located at Langfang city, the "bright pearl city" of Beijing & Tianjin corridor, with beautiful environment, convenient traffic facilities and distinct regional advantages, 50Km distance both to capital Beijing & Tianjin.
We keeps serving worldwide customers with high quality products since 2012.
Quick Detail:
* Compact design
* Easy to operate
* Multi-function application
* Long service life
Advantage:
1. The machine is non-sophisticated in structure, safe and reliable.
2. Longer service life.
3. Advanced design, manufacture rigorous; stable quality and high efficiency.
4. Products can be adapt to user’s multiple usages.
5. To provide you with perfect service and remote technical guidance.
Specifications:
| Engine Model No. | QSB5.9-C210 |
| Emission level | III |
| Rated power (kW) | 154kW @2200rpm |
| Caterpillar Band Model No. | LG-154 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 1.7/2.5 |
| Ground pressure (N/cm2) | 5.9 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~88,0~132 |
| Rotation rate at low gear (r/min) | 0~44,0-66 |
| Torque range at low gear (Nm) | 15000 |
| Torque range at high gear (Nm) | 8600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1200 |
| Feed stroke (mm) | 4200 |
| Feed force (kN) | 55 |
| Retraction force (kN) | 90 |
| Feed rate (m/min) | 0~18 0~55 |
| Retraction rate (m/min) | 0~11 0~33 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 8200x2280x2800 |
| Weight (T) | 14.5 |
|
|
