| Brand Name : | Bealong |
| Model Number : | BHD-180G |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

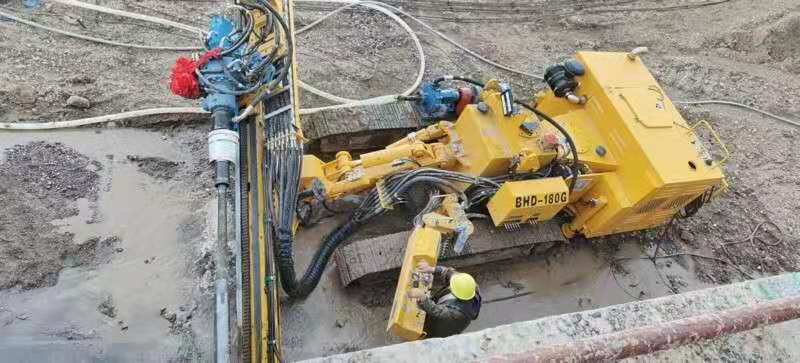

Diesel Engine And Double Speed Tramming Motor Hydraulic Crawler Drilling Machine BHD - 180G
1. BHD-180G hydraulic anchor drilling rig with its articulation system finds its usage at multi-position and multi-angle drilling works with easy operation.
2. The rotation speed of its rotary head is much higher so that keeps its penetration speed much faster.
3. BHD-180G Multifunctional Drilling Rig is designed been used for anchor drilling .
4. It is a full hydraulic machine.
5. It can be used in many fields such as pipe-shed ,micropile,grout jetting,deep foundation pit,highway slope stabilization and railway bed stabilization.
6. It is favored by many customers because of its efficiency and stable performance.
Quick Detail:
① Type:Hydraulic Crawler Drilling Machine
② Power type:diesel
③ Caterpillar band model No.:LG-135
④ Tramming speed(km/h):2.1/3.0
⑤ Feature:stable performance
⑥ Warranty:one year
⑦ Dimension:6700mm*2280mm*2600mm
⑧ Weight:11000kg
Specifications:
| Engine Model No. | QSB5.9-C180 |
| Emission level | III |
| Rated power (kW) | 132kW @2200rpm |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.1/3.0 |
| Ground pressure (N/cm2) | 5.3 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~80,0-160 |
| Rotation rate at low gear (r/min) | 0~55,0-110 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1350 |
| Feed stroke (mm) | 3500 |
| Feed force (kN) | 38 |
| Retraction force (kN) | 76 |
| Feed rate (m/min) | 0~16 0~63 |
| Retraction rate (m/min) | 0-8.5 0~32 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60~219 |
| Maximu passing diameter (mm) | 260 |
| Dimension (mm) | 6700x2280x2600 |
| Weight (T) | 11 |
|
|
