| Brand Name : | Bealong |
| Model Number : | BHD-210 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

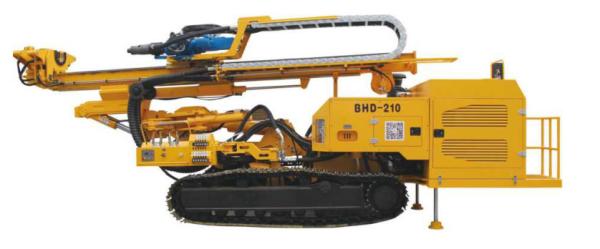

Swing Operation Panel and Hydraulic Crawler Drilling Machine BHD -
210
1. BHD-210 full hydraulic anchor drilling rig has enhanced its
power input and output power.
2. It is more suitable for complex formation construction and has
higher efficiency.
This rig is bright in color, conspicuous.It is flexible,easy to
operate and safe to use. We will provide you with complete and
detailed instructions with one year warranty.
Quick Detail:
① Type:Hydraulic Crawler Drilling Machine
② Power type:diesel
③ Caterpillar band model No.:LG-154
④ Tramming speed(km/h):1.7/2.5
⑤ Feature:stable performance
⑥ Warranty:one year
⑦ Dimension:8200mm*2280mm*2800mm
⑧ Weight:14500kg
Competitive Advantage:
1. Convenient, high efficiency
2. High quality
3. Reasonable price
4. Good service
Specifications:
| Engine Model No. | QSB5.9-C210 |
| Emission level | III |
| Rated power (kW) | 154kW @2200rpm |
| Caterpillar Band Model No. | LG-154 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 1.7/2.5 |
| Ground pressure (N/cm2) | 5.9 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~88,0~132 |
| Rotation rate at low gear (r/min) | 0~44,0-66 |
| Torque range at low gear (Nm) | 15000 |
| Torque range at high gear (Nm) | 8600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1200 |
| Feed stroke (mm) | 4200 |
| Feed force (kN) | 55 |
| Retraction force (kN) | 90 |
| Feed rate (m/min) | 0~18 |
| Retraction rate (m/min) | 0~11 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 8200x2280x2800 |
| Weight (T) | 14.5 |
|
|
