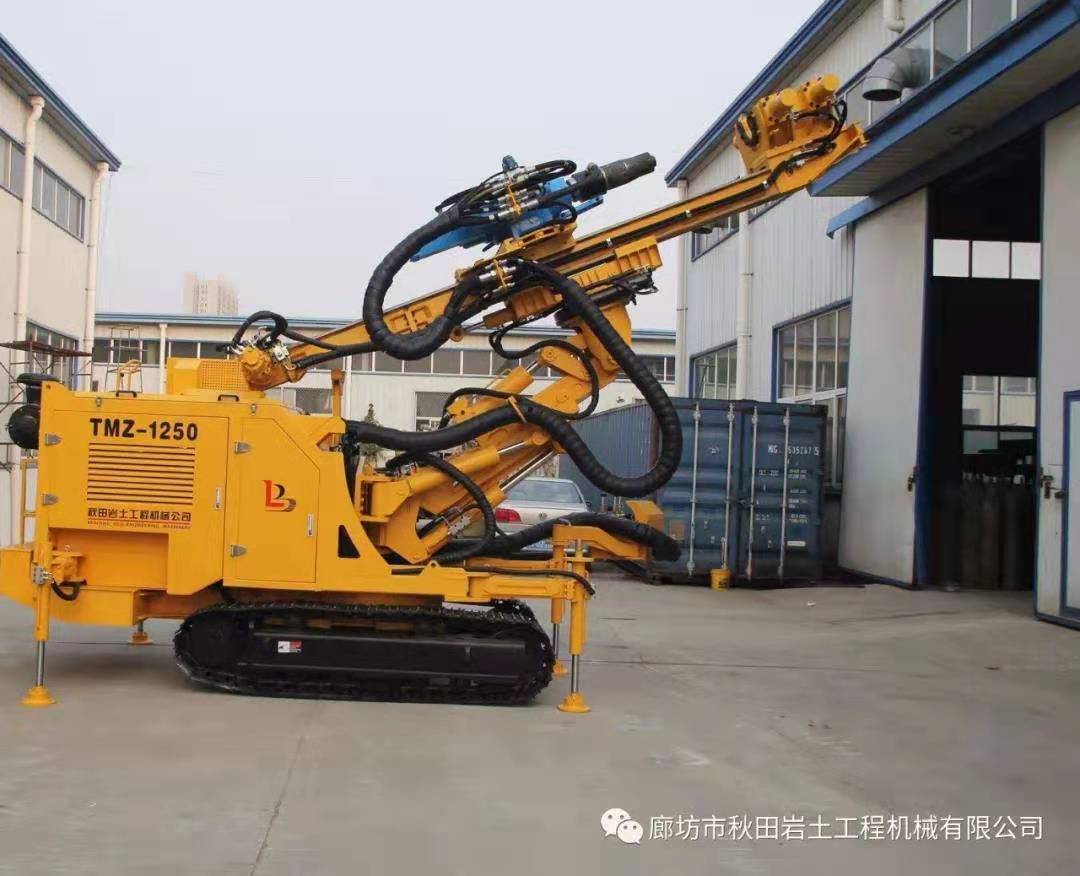

Narrow Spaces Applicable And Hydraulic Crawler Drilling Machine TMZ - 1250
1. TMZ-1250 hydraulic anchor drilling rig is designed specially been used for anchor borehole drilling in small tunnels or some none-spacious places.
2. With compact structure and articulation system combined with rotating tables it can be used for multi-position with multi-angle anchor borehole drilling.
Our advantages:
1). As a manufacture,we have 10 years producing experience
2). Got ISO9001
3). With competitive price,short lead-time.
4). We have professional and technical QC team to ensure 100% products checking.
5). Efficient sales team and excellent customer service
Packaging and Shipping:
Payment:L/C D/A D/P T/T
Delivery Term:FOB,CFR,CIF,EX-Work,etc.
Package: As standard of manufacture
Specifications:
| Engine Model No. | QSB4.5-C160 |
| Emission level | III |
| Rated power(KW) | 123kW @2200rpm |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 1.4 |
| Ground pressure (N/cm2) | 5.8 |
| Gradeability(°) | 20 |
| Rotation rate at high gear (r/min) | 0~46,0~72 0~92,0-144 |
| Rotation rate at low gear (r/min) | 0~32,0~50 0~64,0-100 |
| Torque range at low gear(Nm) | 12000/8500 |
| Torque range at high gear(Nm) | 6000/4250 |
| Percussion frequencyfmin1) | 1150 |
| mpact work(N.m) | 750 |
| Feed stroke(mm) | 2500 |
| Feed force(kN) | 50 |
| Retraction force(kN) | 50 |
| Feed rate(m/min) | 0~10 0~50 |
| Retraction rate(m/min) | 0~10 0~50 |
| Clamp range(mm) | 60 ~ 168 |
| Maximum passing diameter(mm) | 210 |
| Dimension(mm) | 5900x1500x2850 |
| Weight(T) | 10 |
|
|
