| Brand Name : | Bealong |
| Model Number : | BHD-175 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

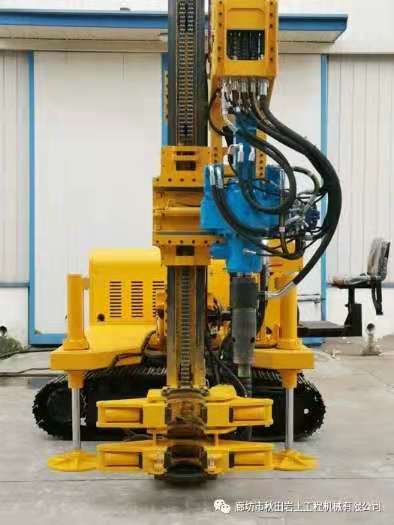

Foundation Drill Rig, Hydraulic Anchor drilling rig,Crawler type,Electric engine,BHD-175
The foundation drill rig is designed for our customer's solutions of all needed jobs such as anchors for slope stabilization and modern foundation execution,jet grouting, freezing borehole drilling in tunnel, auger boring as well as micropile. Our drilling rigs found their usage to bridges, railways, underground lines, motorways, tunnels and buildings all over the world.
Foundation Drill Rig With Large Torque And High-Efficiency BHD - 175
History:
Our company is located at Langfang city, the "bright pearl city" of Beijing & Tianjin corridor, with beautiful environment, convenient traffic facilities and distinct regional advantages, 50Km distance both to capital Beijing & Tianjin.
We keeps serving worldwide customers with high quality products since 2012.
Our advantages:
1). As a manufacture,we have 10 years producing experience
2). Got ISO9001
3). With competitive price,short lead-time.
4). We have professional and technical QC team to ensure 100% products checking.
5). Efficient sales team and excellent customer service
6). Compact design,multi-function application
7). Stable with long service life
Specifications:
| Rated power (kW) | 55+55+18.5+2.2 |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (m/h) | 580/820 |
| Ground pressure (N/cm2) | 5.68 |
| Gradeability (°) | 25 |
| Rotation rate at low gear (r/min) | 0~36,0~72 |
| Rotation rate at high gear (r/min) | 0-36/66/79 0-72/132/158 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N*m) | 750 |
| Percussion frequency (min1) | 1400 |
| Feed stroke(mm) | 3500 |
| Feed force(kN) | 38 |
| Retraction force(kN) | 76 |
| Feed rate(m/min) | 0-18.5 0~75 |
| Retraction rate(m/min) | 0-9.5 0-38.5 |
| Feeding Pattern | Cylinder + Chain |
| Clamp range(mm) | 60-219 |
| Maximum passing diameter(mm) | 260 |
| Dimension(mm) | 7000x2200x2900 |
| Weight(T) | 11 |
|
|
