| Brand Name : | Bealong |
| Model Number : | BHD-180G |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

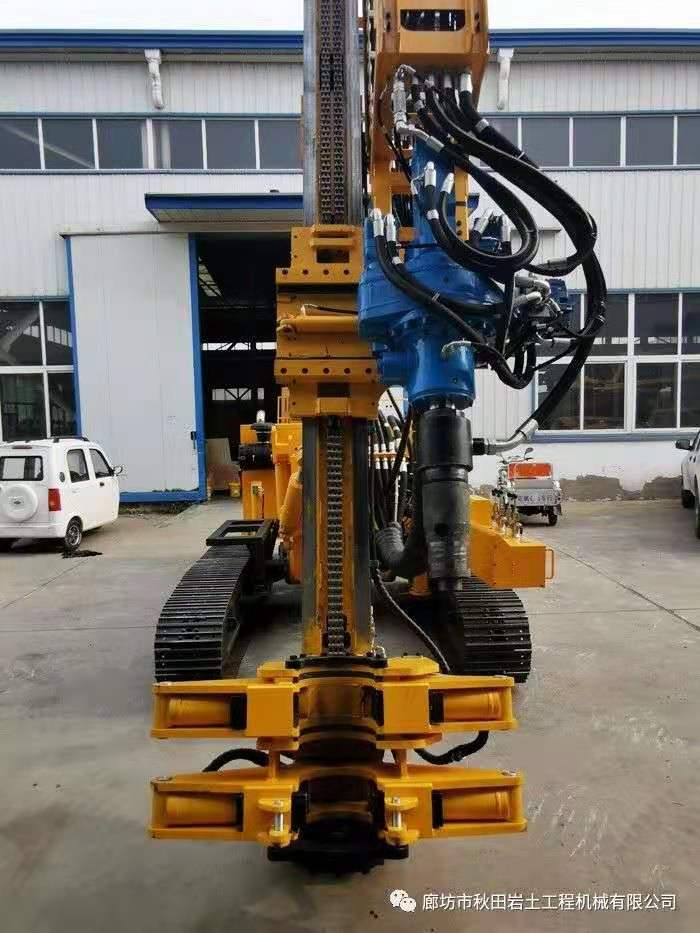

Jet Grouting And Micropile Drilling Drill Rig In Deep Foundation BHD - 180G
Service
Our company is professional at developing, producing and marketing diversified anchor drill rigs. Based on learning and deep understanding foreign advanced technology, we developed independently BHD series of multifunctional hydraulic anchor drill rigs. Various types of anchor drilling rigs have been successfully put on market, they find usage at anchor and micropile engineering field for construction pit, subway, tunnel, railway, highway and disaster relief projects with higher productivity.
Specifications:
| Engine Model No. | QSB5.9-C180 |
| Emission level | III |
| Rated power (kW) | 132kW @2200rpm |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.1/3.0 |
| Ground pressure (N/cm2) | 5.3 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~80,0-160 |
| Rotation rate at low gear (r/min) | 0~55,0-110 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1350 |
| Feed stroke (mm) | 3500 |
| Feed force (kN) | 38 |
| Retraction force (kN) | 76 |
| Feed rate (m/min) | 0~16 0~63 |
| Retraction rate (m/min) | 0-8.5 0~32 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 6700x2280x2600 |
| Weight (T) | 11 |
|
|
