| Brand Name : | Bealong |
| Model Number : | BHD-260 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

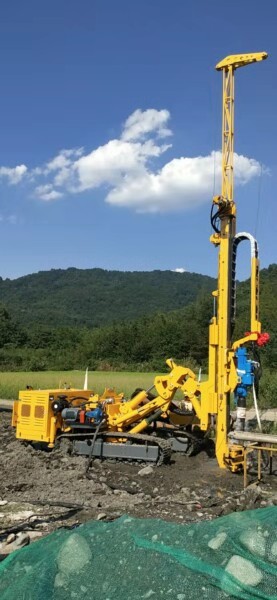

Flexible Full Hydraulic And Crawler Highway Drill Rig BHD - 260
BHD-260 hydraulic anchor drilling rig with more powerful engine, ensure its powerful output. It can be used to drill with efficiency in harder formations such as formations with pebble and boulder.
Our advantages:
1). As a manufacture,we have 10 years producing experience
2). Got ISO9001
3). With competitive price,short lead-time.
4). We have professional and technical QC team to ensure 100% products checking.
5). Efficient sales team and excellent customer service
6). Compact design,multi-function application
7). Stable with long service life
History:
Our company is located at Langfang city, the "bright pearl city" of Beijing & Tianjin corridor, with beautiful environment, convenient traffic facilities and distinct regional advantages, 50Km distance both to capital Beijing & Tianjin.
We keeps serving worldwide customers with high quality products since 2012.
Specifications:
| Engine Model No. | QSC8.3-C260 |
| Emission level | III |
| Rated power (kW) | 194kW @2200rpm |
| Caterpillar Band Model No. | LG-154 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.2/3.2 |
| Ground pressure (N/cm2) | 5.8 |
| Gradeability (°) | 25 |
| Rotation rate (r/min) | 0-100 0~50 |
| Torque range at low gear (Nm) | 17000 |
| Torque range at high gear(Nm) | 9900 |
| Impact work (N*m) | 1180 |
| Percussion frequency (min1) | 1250 |
| Feed stroke (mm) | 4000 |
| Feed force (kN) | 100 |
| Retraction force (kN) | 100 |
| Feed rate (m/min) | 0~12 0~54 |
| Retraction rate (m/min) | 0~12 0~54 |
| Feeding Pattern | Motor + Gear box + Chain |
| Clamp range (mm) | 60 ~ 219/89 ~ 273 |
| Maximum passing diameter (mm) | 300 |
| Dimension (mm) | 7800x2280x2700 |
| Weight (T) | 15 |
