Foundation Machinery/ Pile Drilling Rig /auger drilling rig machine

Construction Guided Auger Boring Machine Foundation Drilling Equipment

Product Application

It's used for drilling large size hole.It's especially for piling foundation and bridge high way and high etc project.
1). Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.
2). In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.

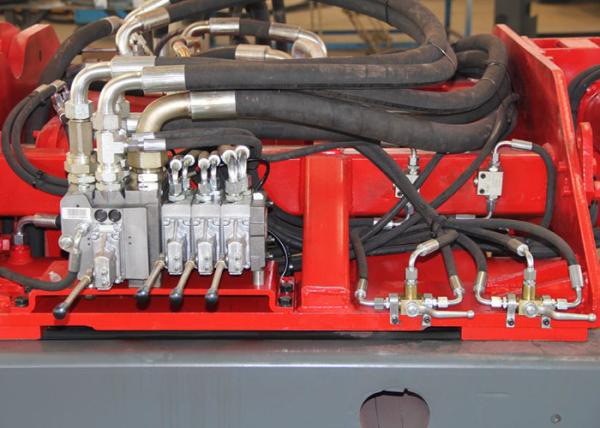

3). Centralized control mechanism,easy to operate.
4). Unique dual muffler,muffler effect, reducing environmental pollution

Description

The BGD-160 guided auger boring drill rig is a kind of underground pipe line laying machine, lately developed by our company, which is energy saving, efficient and flexible in use.

The optical guiding technique has been used in the drill rig for laying the pipes accurately hit preset target. Fully meet preset azimuth requirement.

The drill rig find its usage in pipe line laying for municipal underground water draining pipe line, heat supply pipe line, gas supply pipe line, water supply pipe line, power supply or communication cable underground passage construction and so on. No disruption for surface traffic and other facilities while pipeline installation with this guided auger boring drill rig. It can also be used for pipe shed support project of tunneling and railway bed consolidation.

Specification:

Product Description

With the rapid development of the building foundation, by its own fast construction speed, high quality of hole, small environmental pollution, convenient operation, high safety performance and strong adaptability of rotary drilling rig, the drilling operation is widely used in building foundation engineering, especially in highway industry in cast-in-place concrete bored pile, has been gradually into the rotary drill rotary drilling rig market.

Main Features:

DTH hammer with tube drill in broken rock area by air.
Mud circulation drill in sand soil layer.
Casing drill.
Complex rod and casing drilling.
Single, double, triple tube, swing jet and fixing jet.

Applications:

anchoring, jet grouting and dewatering, subway, high rise building, airport and the other deep foundation pit.

QUATEC is expertise at designing and manufacturing drilling equipment for our customer's solutions of all needed jobs such as anchors for slope stabilization and modern foundation execution, jet grouting, freezing borehole drilling in tunnel, auger boring as well as micropile. Our drilling rigs found their usage to bridges, railways, underground lines, motorways, tunnels and buildings all over the world. QUATEC is staffed with experienced and skilled workers and engineers most of them are from well-known drillIng research institution, which provide solution for drilling requests since early seventies.

QUATEC keeps serving worldwide customers with high quality products and with our heart and soul.
