| Brand Name : | Bealong |
| Model Number : | TMZ-1250 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |
The leading overall transport full hydraulic rotary drilling rig,
can change transport state into working state rapidly;
High-performance hydraulic system and control system in
cooperation; Hydraulic Institute of Technology, which can realize
the machine efficient construction and real-time monitor;
High security, designed in strict accordance with European Union
safety standards. Meet the requirements of dynamic and static
stability.
Unique structure of folding mast can ensure the overall
transportation and reduce the transport size;
Advanced design of rotary angle displacement output mechanism and
central rotary joint output angular displacement can get higher
reliability;
| Model No. | TMZ-1250 | |
| Engine | QSB4.5-C160 III | |
| Max.power output (KW) | 123 | |
| Rated out put at 220 rpm(KW) | 119 | |
| Electric system (V) | 24 | |
| Fuel tank capacity (L) | 200 | |
| 1st circuit operating pressure (Mpa) | 0-22 | |
| 2nd circuit operating pressure (Mpa) | 0-22 | |
| 3rd circuit operating pressure (Mpa) | 0-20 | |
| Hydr. oil tank capacity (L) | 400 | |
| Feed length (mm) | 2500 | |
| Feed force (KN) | 50 | |
| Retraction force (KN) | 50 | |
| Feed rate (m/min) | 0-10 | |
| Retraction rate (m/min) | 0-10 | |
| Fast feed rate (m/min) | 0-50 | |
| Fast retraction rate (m/min) | 0-50 | |
| Mode of Operation | Rotary/Percussive | |
| Percussion Frequency (Times/min) | 0-1150 | |
| Feed rate (m/min) | Low | 0-15 |
| High | 0-60 | |
| Retraction rate (m/min) | Low | 0-15 |
| High | 0-60 | |
| Percussion Frequency (Times/min) | 0-1150 | |
| Max.torque At high speed(N·m) | 6000/4250 | |
| Max.torque At low speed(N·m) | 12000/8500 | |
| High rotating speed (r/min) | 0-92 0-144/ 0-64 0-100 | |
| Low rotating speed (r/min) | 0-46 0-72/ 0-32 0-50 | |
| Transport dimensions(L*W*H) (mm) | 5900*1500*2850 | |
| Weight (Kg) | 8500 | |

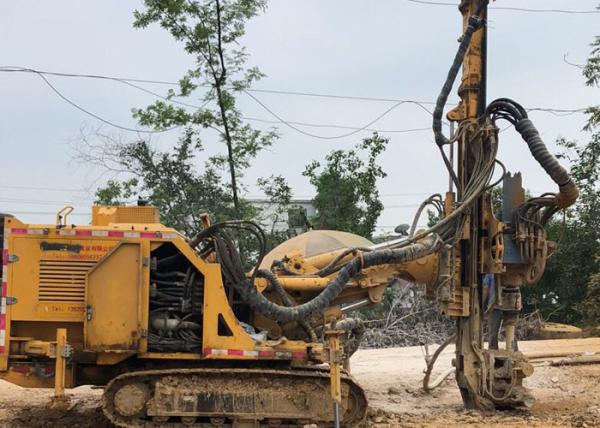

The TMZ1250 drill rig is designed for working in narrow spaces, such as tunnel, culver and foundation ditch. With its rotating-percussion rotary head, it is suitable for drilling in stratum formations of sticky clay, sandstone as well as partially decomposed rock stratum. With down-the-hole hammer, it can drill in hard rock formation efficiently. The emission standard of its power engine is TIERIII. With 360 degree horizontal and vertical rotating tables it can be used efficiently for drilling holes to front facet, flank facet as well as ceiling of tunnels. In the operation panel a special designed operation handle for shifting to grout jetting drilling technique, with suitable rotating and pull back speed for high efficiency grout jetting.
|
|
