| Brand Name : | Bealong |
| Model Number : | BHD-210 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

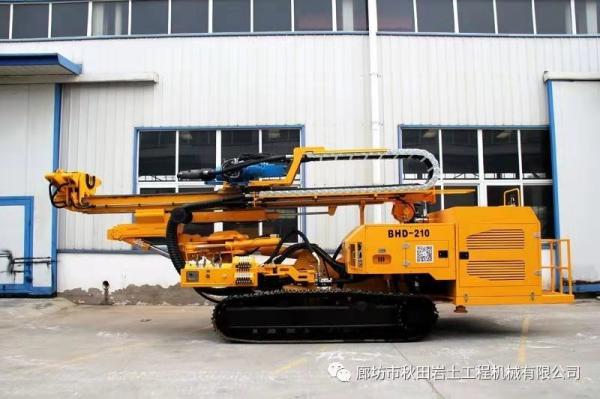

Hydraulic Micropile Drill Rig Cylinder Feeding With ISO 9001 Certificate BHD - 210
BHD-210 full hydraulic anchor drilling rig has enhanced its power input and output power. It is more suitable for complex formation construction and has higher efficiency.
Product description:
Our advantages:
1). As a manufacture,we have 10 years producing experience
2). Got ISO9001
3). With competitive price,short lead-time.
4). We have professional and technical QC team to ensure 100% products checking.
5). Efficient sales team and excellent customer service
Specifications:
| Engine Model No. | QSB5.9-C210 |
| Emission level | III |
| Rated power (kW) | 154kW @2200rpm |
| Caterpillar Band Model No. | LG-154 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 1.7/2.5 |
| Ground pressure (N/cm2) | 5.9 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~88,0~132 |
| Rotation rate at low gear (r/min) | 0~44,0-66 |
| Torque range at low gear (Nm) | 15000 |
| Torque range at high gear (Nm) | 8600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1200 |
| Feed stroke (mm) | 4200 |
| Feed force (kN) | 55 |
| Retraction force (kN) | 90 |
| Feed rate (m/min) | 0~18 0~55 |
| Retraction rate (m/min) | 0~11 0~33 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 8200x2280x2800 |
| Weight (T) | 14.5 |
Service:
Our company is professional at developing, producing and marketing diversified anchor drill rigs. Based on learning and deep understanding foreign advanced technology, we developed independently BHD series of multifunctional hydraulic anchor drill rigs. Various types of anchor drilling rigs have been successfully put on market, they find usage at anchor and micropile engineering field for construction pit, subway, tunnel, railway, highway and disaster relief projects with higher productivity.
|
