| Brand Name : | Bealong |
| Model Number : | BHD-260 |
| Price : | Negotiable |
| Payment Terms : | L/C D/A D/P T/T |
| Certification : | ISO 9001 |

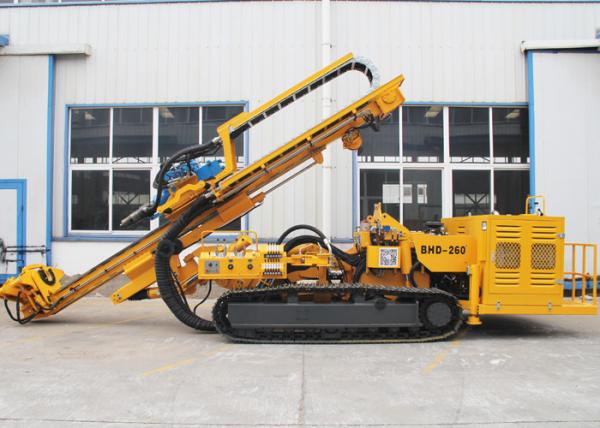

Diesel Engine With Motor Gear Box Feeding Micropile Drill Rig BHD - 260
BHD-260 hydraulic anchor drilling rig with more powerful engine, ensure its powerful output. It can be used to drill with efficiency in harder formations such as formations with pebble and boulder.
BHD-260 micropile drill rig is designed been used for anchor drilling . It is a full hydraulic machine.It can be used in many fields such as pipe-shed ,micropile,grout jetting,deep foundation pit ,highway slope stabilization and railway bed stabilization . It is favored by many customers because of its efficiency and stable performance.
History:
Our company is located at Langfang city, the "bright pearl city" of Beijing & Tianjin corridor, with beautiful environment, convenient traffic facilities and distinct regional advantages, 50Km distance both to capital Beijing & Tianjin.
We keeps serving worldwide customers with high quality products since 2012.
Competitive Advantage:
Specifications:
| Engine Model No. | QSC8.3-C260 |
| Emission level | III |
| Rated power (kW) | 194kW @2200rpm |
| Caterpillar Band Model No. | LG-154 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.2/3.2 |
| Ground pressure (N/cm2) | 5.8 |
| Gradeability (°) | 25 |
| Rotation rate (r/min) | 0-100 0~50 |
| Torque range at low gear (Nm) | 17000 |
| Torque range at high gear(Nm) | 9900 |
| Impact work (N*m) | 1180 |
| Percussion frequency (min1) | 1250 |
| Feed stroke (mm) | 4000 |
| Feed force (kN) | 100 |
| Retraction force (kN) | 100 |
| Feed rate (m/min) | 0~12 0~54 |
| Retraction rate (m/min) | 0~12 0~54 |
| Feeding Pattern | Motor + Gear box + Chain |
| Clamp range (mm) | 60 ~ 219/89 ~ 273 |
| Maximum passing diameter (mm) | 300 |
| Dimension (mm) | 7800x2280x2700 |
| Weight (T) | 15 |
|
|
